The most direct methods of observation of particles are those which make the
particle leave a visible track. These include:
- The cloud chamber.
When an energetic charged particle passes through matter, it knocks
electrons out of the atoms in its path, leaving a trail of positive ions
behind. In air which is supersaturated with water vapor, the ions
trigger condensation of the vapor. The track of the particle becomes visible as a
trail of water droplets.
- The bubble chamber.
In the bubble chamber the supersaturated water vapor of the cloud chamber is replaced by a superheated liquid.
Ions created along the track of a charged
particle provide nuclei around which boiling occurs, and the track becomes
visible as a trail of bubbles. The bubble chamber has now superseded
the cloud chamber for most purposes.

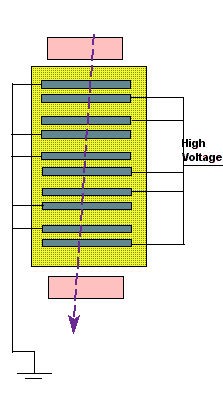

- The spark chamber.
An electric discharges passes more easily through a gas which contains ions. If a charged particle passes through the region between two plates, with a
voltage applied across the plates, a discharge will pass along the trail of
ions left behind by the particle, thus making its track visible. The
gap between the plates must be fairly small, so spark chambers are usually
used in large arrays.
- Photographic emulsion.
A charged particle interacts with the silver bromide in the emulsion.
The record of its passage through a photographic emulsion constitutes a photographic image. Photographic emulsion has been
particularly useful in recording cosmic rays (very high energy particles
reaching the upper atmosphere from outer space).
Other kinds of particle detector simply register the passage of a particle
through the apparatus and give no
information about its path. They are called counters.
- Scintillation counters use
the fact that some plastic materials emit a flash of light when a charged
particle passes through them.
- Cerenkov counters detect the
characteristic electromagnetic radiation which is emitted when a charged
particle moves through a transparent medium with a speed greater than that of light
in the medium.
- Geiger counters are similar in principle to the
spark chambers, but measure the current in the discharge rather than detecting the visible
light from the spark.
All these detectors only detect
charged particles. Neutral particles must be observed indirectly, by the
way they influence charged particles and by using conservation laws.
